Specification

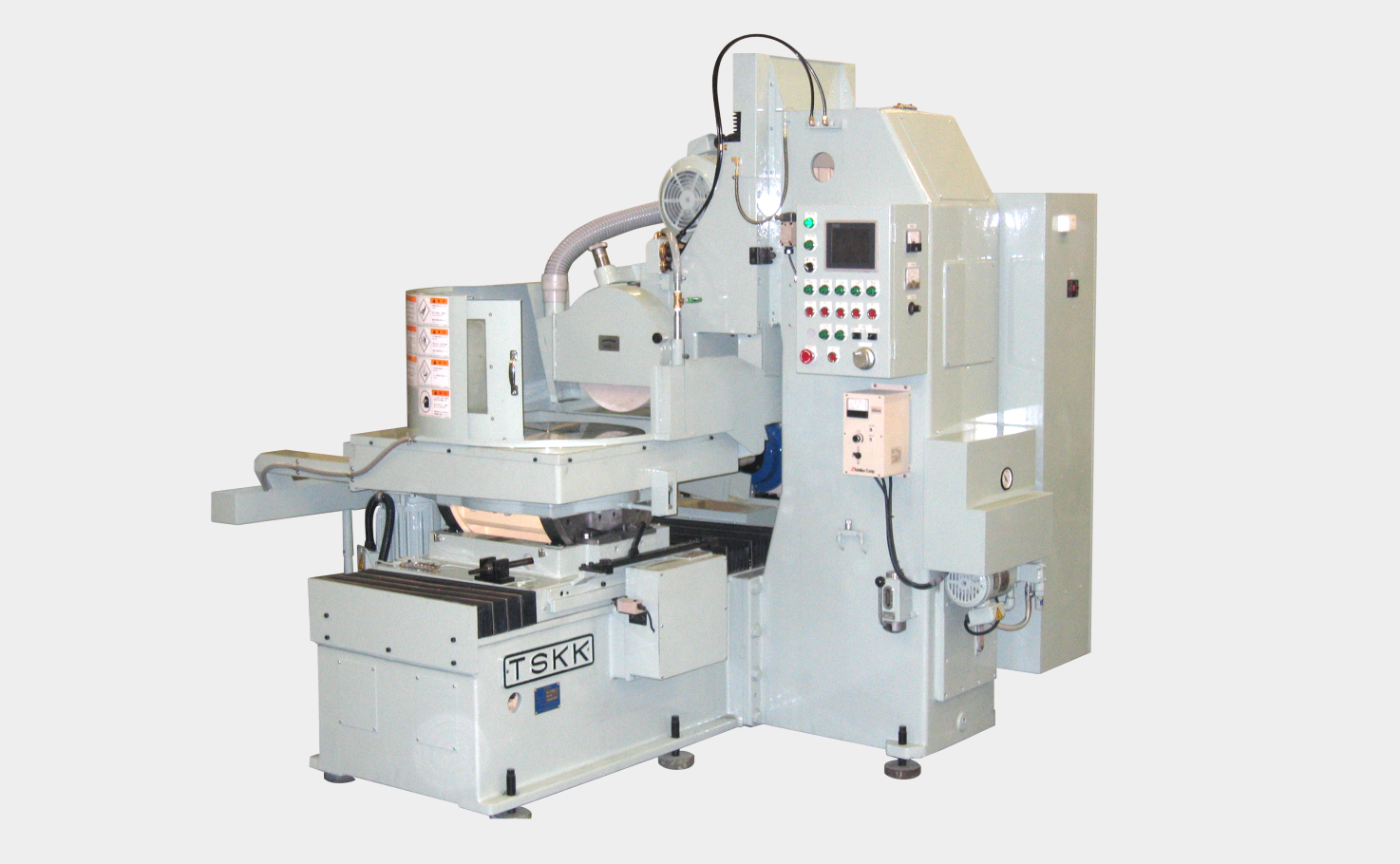

TR50S
Horizontal Spindle type Rotary Grinding Machine
It grinds materials such as iron and ceramics. With uniqueness of Mackensen-type metal support horizontal spindle, it enables grinding with its superior rigidness.
Specification
| Diamerter of electromagnetic chuck | mm |  500 |
| Effective aperture of electromagnetic chuck | mm | 600 |
| Maximum distance between lower surface of new wheel and chuck surface | mm | 145 |
| Vertical displacementof wheel axis | mm | 220 |
| Tilting angle of chuck table | ±20゜ | |
| Size of wheel (O.D.×thickness×I.D.) | mm | 355×38×127 |
| Revolution of wheel | mln-1 | 1600 |
| Longitudinal travel of table | mm | 300 |
| Feeding speed of table (nonstep) | mm/min | 200～1500 |
| Revolution of table(nonstep) | mm-1 | 40～200 |
| Machine weight | Kg | 3600 |
